Overview OV3000-IAD Gateway is cutting-edge products that connect analogue telephones, fax machines and PBX systems with IP telephony networks and IP-based PBX systems. Featuring rich functionalities and easy configuration.
OV3000-IAD is ideal for small and medium enterprises that wish to integrate a traditional phone system into any IP-based system.
The
OV3000-IAD series provides 8/16/32 analog user access, to meet any different
scale enterprise requirements.
Features and Benefits
Completed various capacity
OV3000-IAD can provide 8/16/32/64 analog user ports.
Interoperability
nteroperable with a broad list of softswitch, PBX, and IP-PBX.
Reliable
Stable with advanced hardware and software architecture.
High quality sound
Provide
perfect QoS and various speech coding and decoding.

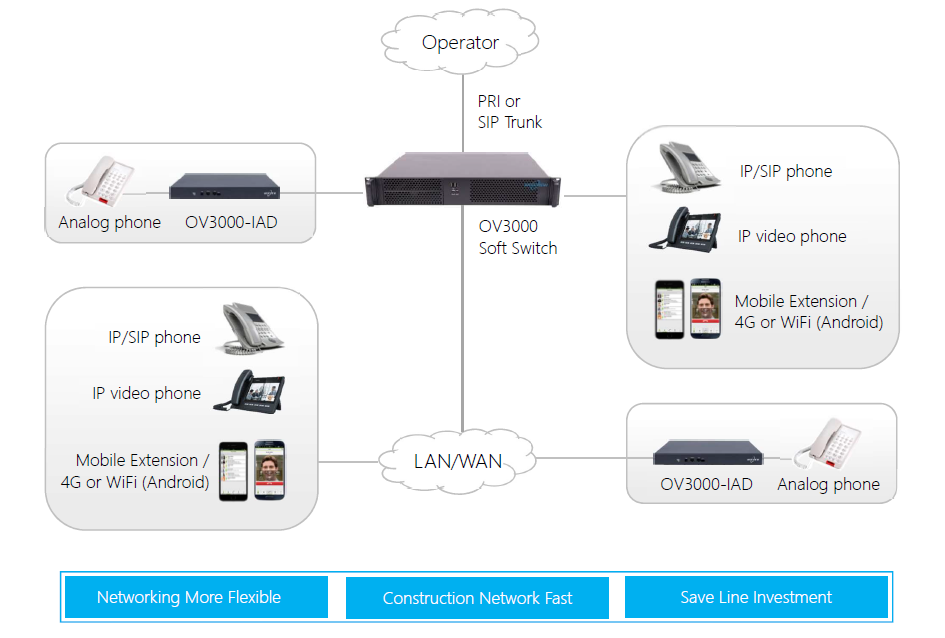

Applications
Specification
FXS Ports:8口 16口, 32口
Protocol: SIP/ RFC3261, SDP / RFC2327, RTP/RTCP, MGCP, H.248
Codec: G.711(alaw/ulaw), G.723, G.729
Voice Capability: Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC
DTMF Mode: RFC2833, SIP Info, In-band
Network: Static Route, DHCP, PPPoE, 802.1Q VLAN
Management: Web, TR069
Port: 1 x WAN, 3 x LAN ;1 x WAN,4 x LAN,1 x Console; 1 x WAN,4 x LAN,1x Console;
Input: AC 100-240V, DC12V 5
Power: < 18W ;< 30W;< 40W
Operation Range: -10～50℃
Humidity: 10-95% non-condensing
Dimensions
(L×W×H) (mm): 240×154×37
mm ;440×230×44
mm(1U);440×250×44
mm(1U)
|
