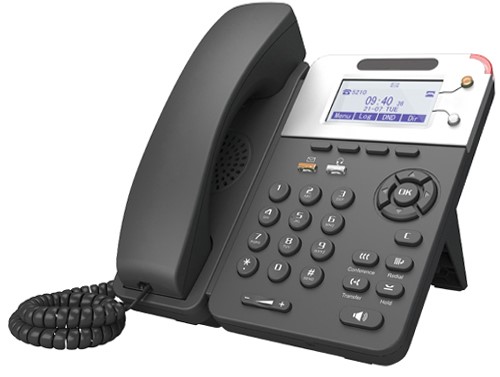

P-220 is a highly innovative based
SIP VoIP phone, It can perfectly satisfy with all kinds of the businessman
communication.ES280-P integrates with 2.4” 132x64-pixel graphical LCD with
backlight, a large resolution display screen, elegant and intuitive user interface.
ES280-P offers high audio quality HD handset, HD speaker and HD codec (G.722),
with a rich set of business communication features that can definitely improve
working efficiency and sense.
P-220is highly suitable for SMEs, Home Office and ISP applications.Specially
designed for IP service.
KEY FEATURES
-
2 SIP accounts,
-
3-way conferencing
-
Auto-answer
-
Black list
-
Call forward
-
Call history
-
Call hold
-
Call return
-
Call transfer (blind/busy/ask)
-
Call waiting
-
Caller ID display
-
DND
-
Direct IP call without SIP proxy
-
Hotline
-
Hand-free indicator
-
Mute
-
Multi-Language
-
Redial
-
Ring tone selection
-
SMS
-
Time setting(SNTP/SIP Server/manual)
-
Speed dial
-
Supports PC control
-
Switching SIP server & Second server
-
Volume control
-
Message Waiting Indication LED
Advanced Features
-
Functions customizable keys
-
XML Phone Book search and input & output
-
Enterprise phone book(800 entries)
-
LDAP phone book
IP PBX System Integration
-
Busy lamp field (BLF), BLF list
-
DND & Forward synchronization
-
Intercom, Paging, MOH
-
Bridged line appearance (BLA)
-
Call pickup, Dial Plan
-
Call recording
Codes and Voice Features
-
Wideband Codec: G.722
-
Narrowband codec: G.711μ/A, G.723.1, G.726, G.729AB,iLBC
-
Full-duplex, Automatic Echo Cancel
-
Support VAD/CNG/AEC/AGC
Network Features
-
SIP V1 (RFC2543), V2 (RFC3261)
-
SIP connection: Proxy mode & Peering Points mode
-
DNS SRV (RFC3263);
-
SRTP voice encryption(RFC3711)
-
Redundant server support
-
NAT Traversal: STUN mode
-
DTMF: In-Band, RFC2833, SIP Info
-
HTTP/HTTPS Web Management
-
IP Assignment: Static/DHCP/PPPoE
-
Bridge/Router mode for PC port
-
TFTP/DHCP/PPPoE client
-
DNS client, NAT/DHCP server
Management
-
Auto-provision via FTP/TFTP/HTTP/HTTPS
-
Configuration: browser/phone/auto-provision
-
SNMP V1/2
-
Trace package and system log export
Physical Features
-
2.4”132x64 graphic LCD
-
33 keys including 2 programmable keys
-
5 x LED indicator:
- LED for call and message waiting indication
- Line keys with LED indicator: 2
- Dual-color (red or green) illuminated LEDs for line status information;
- LED for headset;
-
Power consumption: 1.4-2.6W
-
Power over Ethernet：IEEE802.3af Class0
-
HD Hands-free Speaker (0~ 7KHz) x 1
-
HD Hands-free Microphone (0~ 7KHz) x 1
-
HD Handset (RJ9 )x 1
-
2xRJ45 10/100M Ethernet ports
-
Power adapter: AC 100~240V input
-
DC 5V/1A output
-
Operating temperature: 0~40℃
-
Storage temperature: up to 60°C
-
Operating humidity: 10~95%
-
Color: Black
-
42.5° bracket and wall-mountable
-
Dimension: 185 x 185 x 40mm
-
Net weight: 1.02 Kg
Security
-
VLAN(802.1pq), LLDP, AES,CDP
-
TLS (Transport Layer Security)
-
Phone lock for personal privacy protection
-
L2TP VPN tunneling protocol - added
-
Admin/User 2-level configuration mode
|
