OVERVIEW
OV3000 GoIP
Gateway is a multi-functional gateway use to efficiently realize the smooth
transition between mobile network and VoIP network.
With
new designed pop-up SIM card slot, users are able to change SIM card
easily without dismantling equipment. Moreover, with the opened API,
the users could build their own application software to send SMS/USSD messages
or bulk SMS messages, or push their text messages from email, HTTP etc. It has
great performance in software features also in new hardware structure design.
The
gateway provide low cost, easy and flexible IP telephony solution to
enterprise, SMEs and business office etc.
FEATURES
& BENEFITS
4/8/16 GSM/CDMA/WCDMA Channels supported
on OV3000 GoIP Gateway.
Supports different mobile networks. GMS (850/900/1800/1900MHz)
& CDMA (800MHz) & WCDMA (850/900/1900/2100MHz).
HTTP API for SMS Application Integration.
SMS to Email and Email to SMS.
Flexible Dial Rules and Manipulation Rules.
TYPE

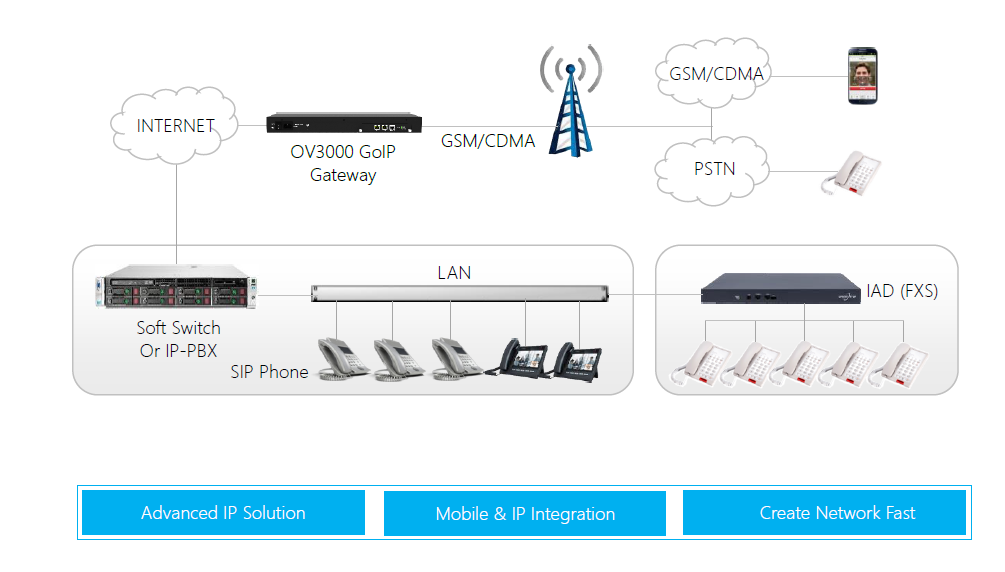

APPLICATION
As the NGN network coming, more and more enterprise
communication device move to IP technology. OV3000 GoIP Gateway makes IP-PBX or
Soft Switch device access to mobile operator’s GSM/CDMA/WCDMA network be possible.
OV3000 GoIP Gateway helps enterprise owner
build up their private network fast and more flexible.
PHYSICAL INTERFACE
-
4/8/16 Channels
-
Antennas Connectors: SMA
-
Ethernet Interfaces: 2*10/100 Base-T, RJ45
-
LED Indicators: Power, RUN, Signal Strength Indicators
-
Console: 1* RS232
VOICE PROCESSING
-
Protocol: SIP v2.0, RFC3261
-
Codecs:G.711A/U law, G.723.1, G.729A/B
-
Silence Suppression
-
Comfort Noise Generator(CNG)
-
Voice Activity Detection(VAD)
-
Echo Cancellation: G.168 with up to 128ms
-
Dynamic Jitter Buffer
-
DTMF: RFC2833, SIP Info
-
Call Progress Tone Generation
-
Programmable Gain Control
-
NAT: STUN, Dynamic NAT, Static NAT
MOBILE
-
SIM Interface: 1.8v, 3.0v SIM Interface
-
GSM: 850/900/1800/1900MHz; CDMA: 800MHz;
-
WCDMA:850/900/1900/2100MHz
-
USSD Encoding: Unicode/ASCII
-
HTTP API for SMS
-
Polarity Reversal
-
PIN Modify
-
CID/CLIR
-
SMS Send and Receive, SMS to Email
-
Call Waiting/Call Back, Call Forward
-
GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR
SOFTWARE FEATURES
-
Calling Type: Mobile to VoIP, VoIP to Mobile
-
SIP Trunk and Trunk Group
-
Caller/Called Number Manipulation Rules
-
SIP Codes Mapping
-
Auto CLIP, White/Black List, PSTN Hotline, VoIP Hotline, Abnormal Call Monitor
-
Call Minutes Limitation for Ports/Single Call
-
Balance Check, Low Balance Alarm,
-
Auto Update SIM Number, Random Call Interval
-
Auto CLIP
-
Signaling & RTP Encryption
-
SMPP for SMS
NETWORK
-
Static IP, DHCP Client, PPPoE
-
Network Protocols: TCP/UDP,TFTP, FTP, RTP/ RTCP, SSH,ARP,RARP,ICMP Ping,
-
NTP, HTTP, DNS
-
Static/Dynamic ARP Request
-
PPTP VPN
MAINTENANCE
-
Web/Telnet Configuration
-
Configure Backup/Restore
-
Firmware Upgrade by HTTP/TFTP
-
Factory Reset
-
CDR (10000 Lines CDRs Storage Locally)
-
Syslog/Filelog, Ping and Tracert,
-
Traffic statistics: TCP, UDP, RTP
-
VoIP Call Statistics
-
PSTN Call statistics: ASR,ACD,PDD
-
Voice Diagnose with Loopback
-
GSM Network Test, IVR Customization, Auto Provisioning, SIP/RTP/PCM Capture
POWER SUPPLY & DIMENSION
-
AC: 100V ~ 240V, 50 ~ 60Hz
-
DC: 12V, 4.0A
-
Power Consumption: 25W (4/8 Channel) 38W (16 Channel)
-
Operation Temperature : 0℃ ~ 45℃,
-
Storage Temperature: -20℃ ~ 80℃
-
250mm×156mm×32.5mm
-
440mm×270mm×44mm
-
Net Weight: 1.07 Kg (4/8 Channel) 3.60 Kg (16 Channel)
-
Package Weight: 2.05 Kg (4/8 Channel) 5.50 Kg (16 Channel)
|
