The
P-260 is a small-screen-based IP Phone, it has fashion and technological
appearance, excellent voice quality, and powerful features, and it is a new
generation of intelligent phones to replace of the traditional desktop office
terminals, It accomplished the powerful telephony features by cooperating with
the communications platform, such as the call transfer, hotline, three-party
conference calling, speed dial, voice mail, Do Not Disturb, etc.
The
P-260 IP Phone maximum supports 6 DSS modules (DSS-32) that totally contain 192
programming buttons. With the Busy Lamp Field function, operators can manage
and monitor the calls more efficiently.
KEY FEATURES
-
HD Voice: HD Codec, HD Speaker, HD Handset
-
3 SIP accounts and support 3-way conference, SMS
-
2xLAN, PoE, RJ9Headset
-
Auto-provision, HTTP/TFTP/FTP, TR069
-
Multi-language, e.g. English, Russian, French etc
-
Excellent adjustable bracket and wall-mountable
-
XML/LDAP, BLF/BLA, Search someone in the Phone book

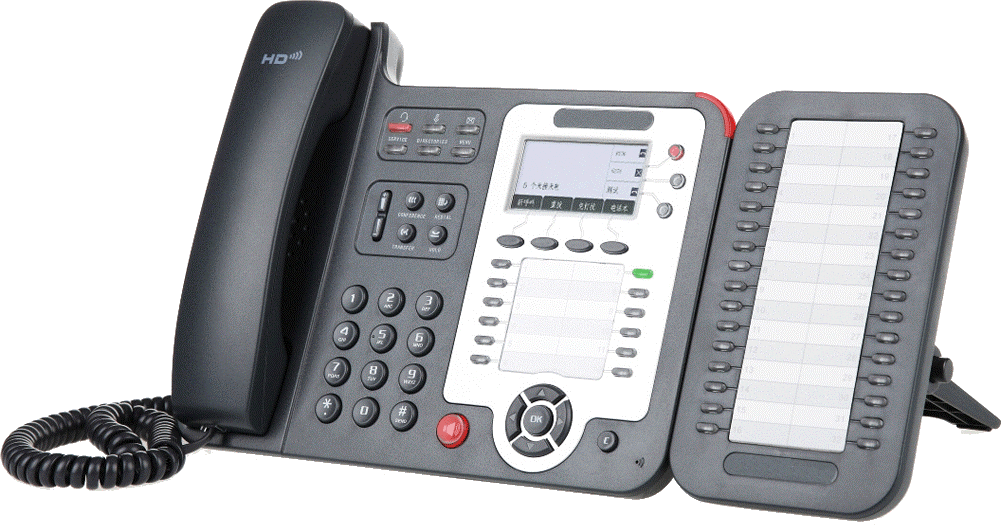

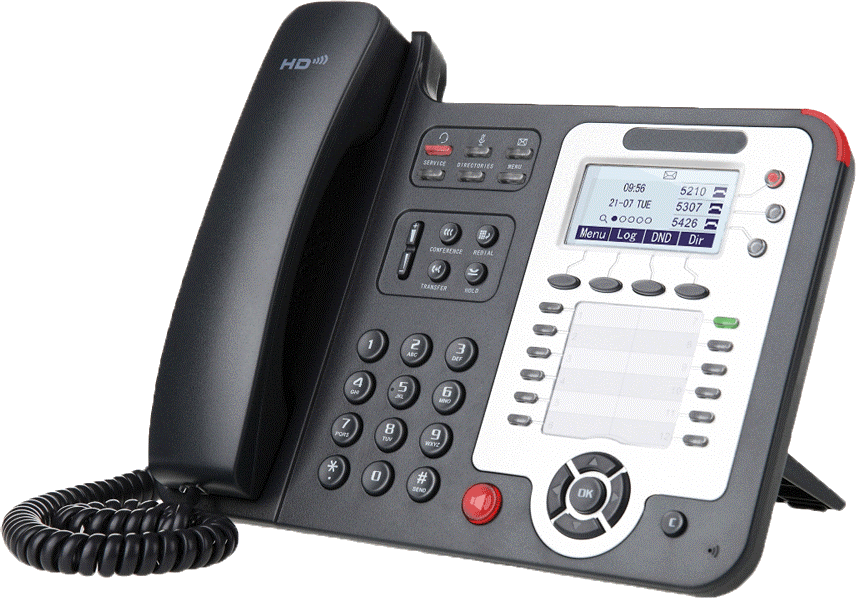

P260 SIP Phone DSS-32 Module P260+DSS-32
PHONE FEATURES
-
3 SIP accounts
-
3-way conferencing
-
Auto-answer
-
Black list
-
Call forward
-
Call history
-
Call hold
-
Call return
-
Call transfer (blind/busy/ask)
-
Call waiting
-
Caller ID display
-
DND
-
Direct IP call without SIP proxy
-
Hotline
-
Hand-free indicator
-
Mute / Unmute (Microphone)
-
Multi-Language
-
Redial
-
Ring tone selection
-
SMS
-
Soft keys programmable
-
Speed dial
-
Supports PC control
-
Tone scheme
-
Volume control
-
Voicemail Message Indication LED
ADVANCED FEATURES
-
XML Phone Book search and input & output
-
Enterprise phone book (800 entries)
-
Personal Phonebook (300 entries)
-
LDAP phone book
-
Functions customizable keys
AUDIO FEATURES
-
HD Voice Microphone/Speaker (Handset/Hands-free, 0~ 7 KHz Frequency Response)
-
Narrow band CODEC: G.711a/u, G.723.1,G.726-32K, G.729AB, AMR, iLBC, Opus
-
Packet Loss Concealment (PLC)
-
Dynamic Adaptive Jitter Buffer upto 300ms
-
DTMF: In-band, Out-of-Band–DTMF-Relay (RFC2833) / SIPINFO
-
Wideband ADC/DAC 16KHz Sampling
-
Full-duplex hands-free speaker phone with AEC (Max filter length – 96ms)
-
Wideband CODEC: G.722
-
Voice Activity Detection (VAD)/Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR).
NETWORKING
-
SIP V1 (RFC2543), V2 (RFC3261)
-
DNS SRV (RFC3263)
-
NAT Traversal: STUN Mode
-
DTMF: In-Band, RFC2833, SIP info,
-
Auto Http/Https Web Management
-
IP Configuration: Static/DHCP/PPPoE
-
Bridge/Router mode for PC port
-
TFTP/DHCP/PPPoE client
-
Telnet/Http/Https
-
DNS client, NAT/DHCP service
-
Web Account log0ut
-
QoS
DEPLOYMENT & MAINTENANCE
-
Auto-Provisioning via FTP / TFTP / HTTP / HTTPS / SNMP V1/2, TR069 optional
-
Configuration: Browser/phone/auto-provision
-
Auto/Manual online Software Upgrade
-
Web Management Portal
-
Web-based Packet Dump
-
Syslog
PHYSICAL FEATURES
-
132x64 graphic LCD
-
50 keys, including 12 Programmable-keys
-
22 LEDs:
- 1 * Headset Light
- 3 * Account Lights
- 1 * Message Light
- 12 * Programmable Lights
- 4 * Function Lights
- 1 * Speaker Light
-
Power Consumption:
- PoE: Idle–1.7W, Peak–2.5W,
- Adapter: Idle–2.5W, Peak–3.5W
-
HD Hands-free Speaker (0~ 7KHz) x 1
-
HD Hands-free Microphone (0~ 7KHz) x 1
-
HD Handset (RJ9 )x 1
-
1.5M CAT5 Ethernet Cable x 1
-
RJ9 Phone Jacket x 2: Handset x 1, Headphone x 1
-
3.5mm PC Headset Port X 1
-
RJ45 Ethernet Jacket x 2
-
Power Adapter: AC 100 ~ 240v
-
DC Power Input: 12V/1A
-
USB Port: DC 5V
-
Working Temperature: 0~40℃
-
Storage Temperature: up to 60℃
-
Working Humidity: 10~95%
-
Color: Black
-
Back Rack x 1: Desktop Stand (Two angles)
-
Device Dimensions: 287 x 214 x 90mm (Desktop Stand)
-
Net Weight: 1.2 Kg

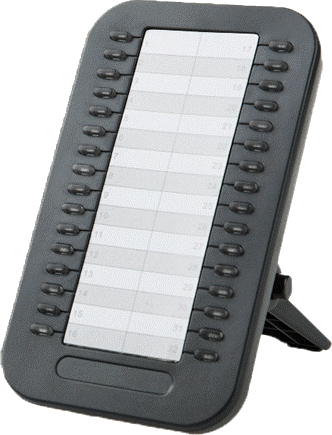

DSS-32 EXPANSION MODULE
-
32 Programmable DSS keys
-
DSS key with dual-color indication LED
-
Busy Lamp Field (BLF) / Speed Dialing
-
Call Conference / Call Waiting / DND
-
Power supply through SIP phone
-
Maximum 6 no.s DSS module connection (Total 192 keys)
-
RJ45 Ethernet Jacket x 2
-
Net Weight: 0.25 Kg
-
Dimensions: 73 x 100 x 58mm
-
Working Temperature: 0~40℃
-
Working Humidity: 10~95%
|
