? Standard Analogue
? Robust housing, constructed of cold rolled steel
? Vandal resistant metal button
? Hands free operation
? Surface & Pillar mounting, simple installation
? Weather proof protection IP65
? One button for emergency call
? Phone line power / External power supply
The Hands Free Telephone is designed to meet the needs of client who experience loss through vandalism. Ideal for Highway,parking lots, Roadside, railway/metro platforms, hospitals, police stations, outside building etc.
Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad or Button is weather and vandal resistant.
Standard Analogue
As a standard analogue telephone, this unit provides basic telephone functions and can be connected to any standard two-wire telephone line, including analogue PABX lines and PSTN.
TECHNICAL SPECIFICATIONS
1)Casing Material :Cold rolled steel body
2)Colors :RED, YELLOW, GREY
3)Handset Material :No handset
4)Keypad :No keypad
5)Temperature :Operating: -40°C to +70°C
Storing: -40°C to +75°C
6)Weather Resistance :IP65
7)Ringing Tone :Shrill warble tone 80 dBA @ 1 meter typical
M.T.B.F.
Calculated to have an M.T.B.F. in excess of 50,000 hours using
8)Weight :Up to 8.5 kg depending on option
9)ANALOGUE:Dialing MF (tone)
10)Power supply
Drawn from telephone line
Lightning / Transients
Protection to ITU-T k.21 enhanced levels
Programming
Can be programmed as an auto-dial phone
11)PACKAGE

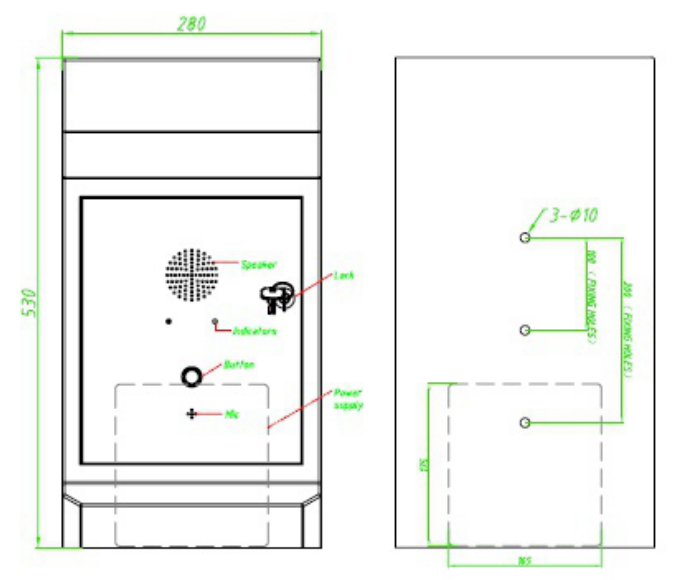

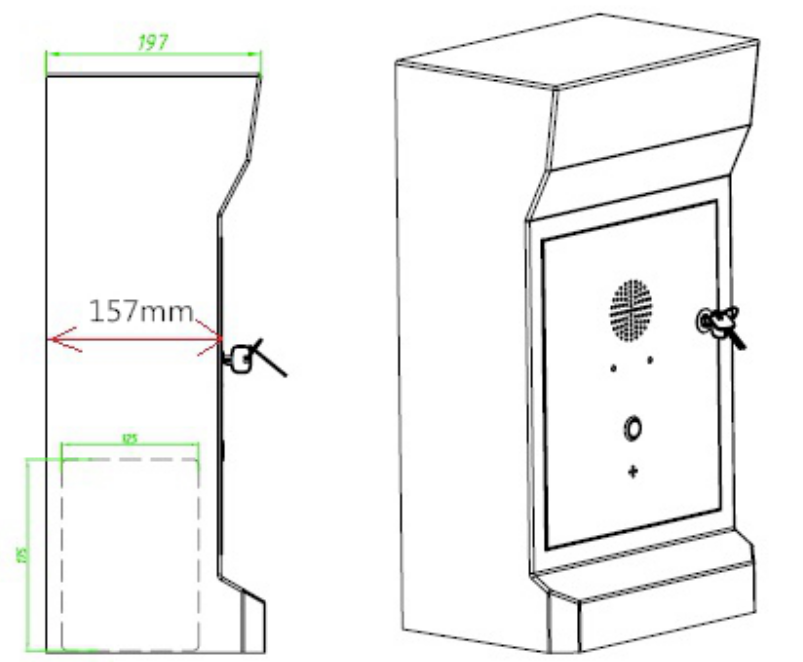

unit size: 530 *280*197(mm)
Carton size:600*320 *240( mm )
Packaging materials: pearl cotton, carton
Gross weight: 9.5KG
Net weight: 8.5KG
12)Installation

|
